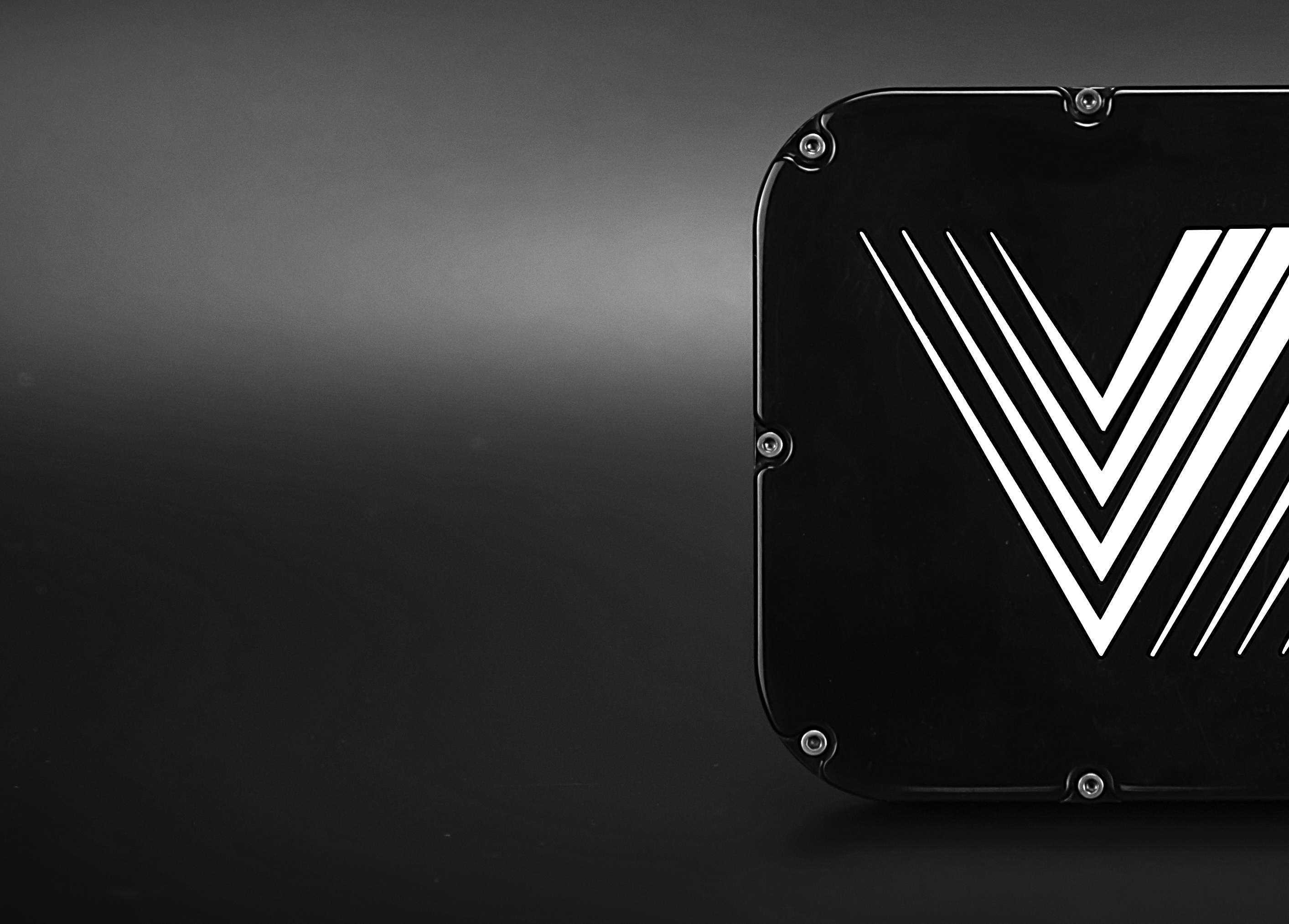

ViSight Auto

ViSight is a high-performance W-band radar that provides high-resolution imagery and target tracking in Degraded Visual Environments (DVE). ViSight Auto is the perfect sensor for automotive applications, including pedestrian and small vehicle detection and tracking. It provides small vehicle detection to ranges beyond 600 m, and mapping of the surrounding automotive environment.

4D IMAGING

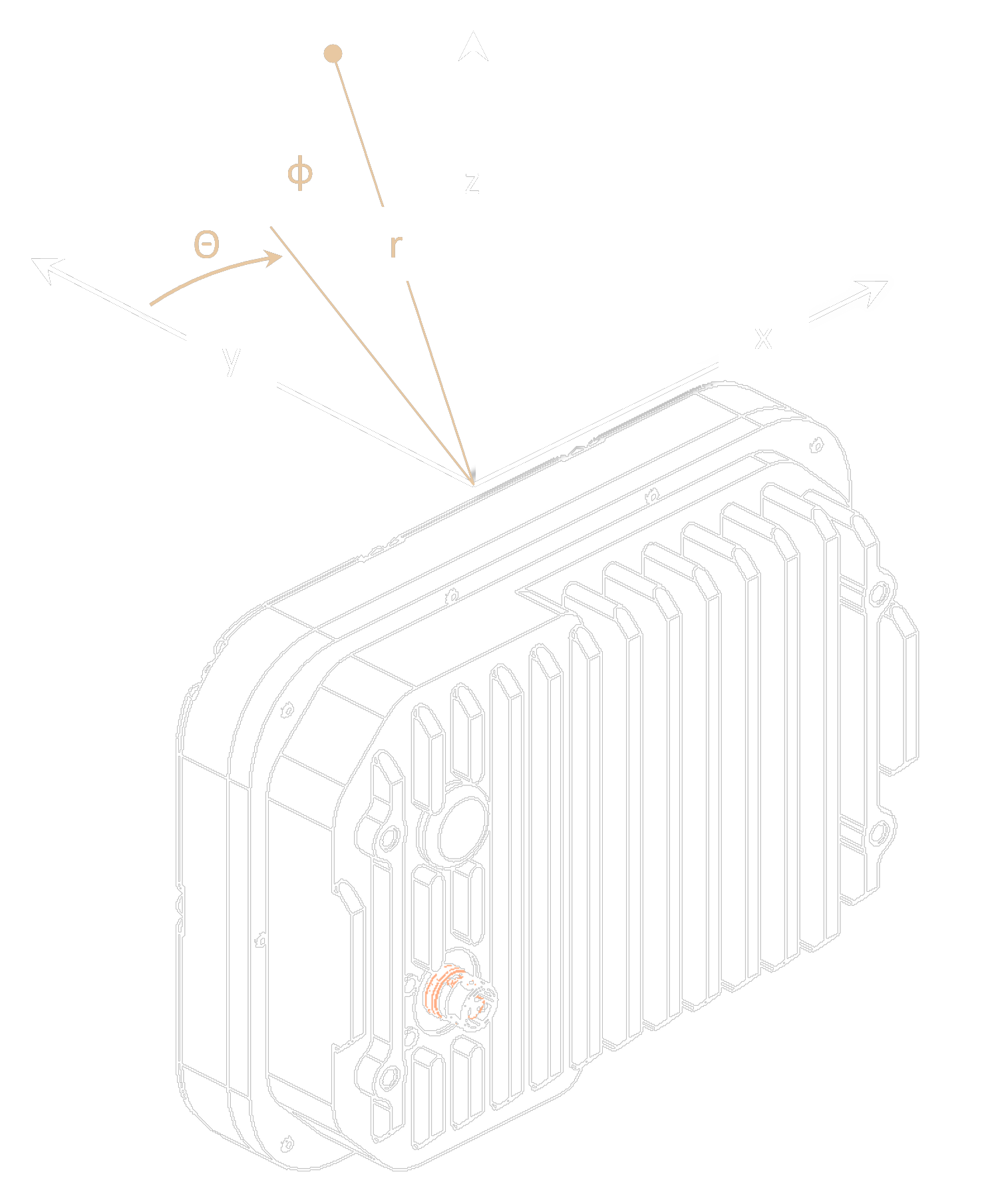

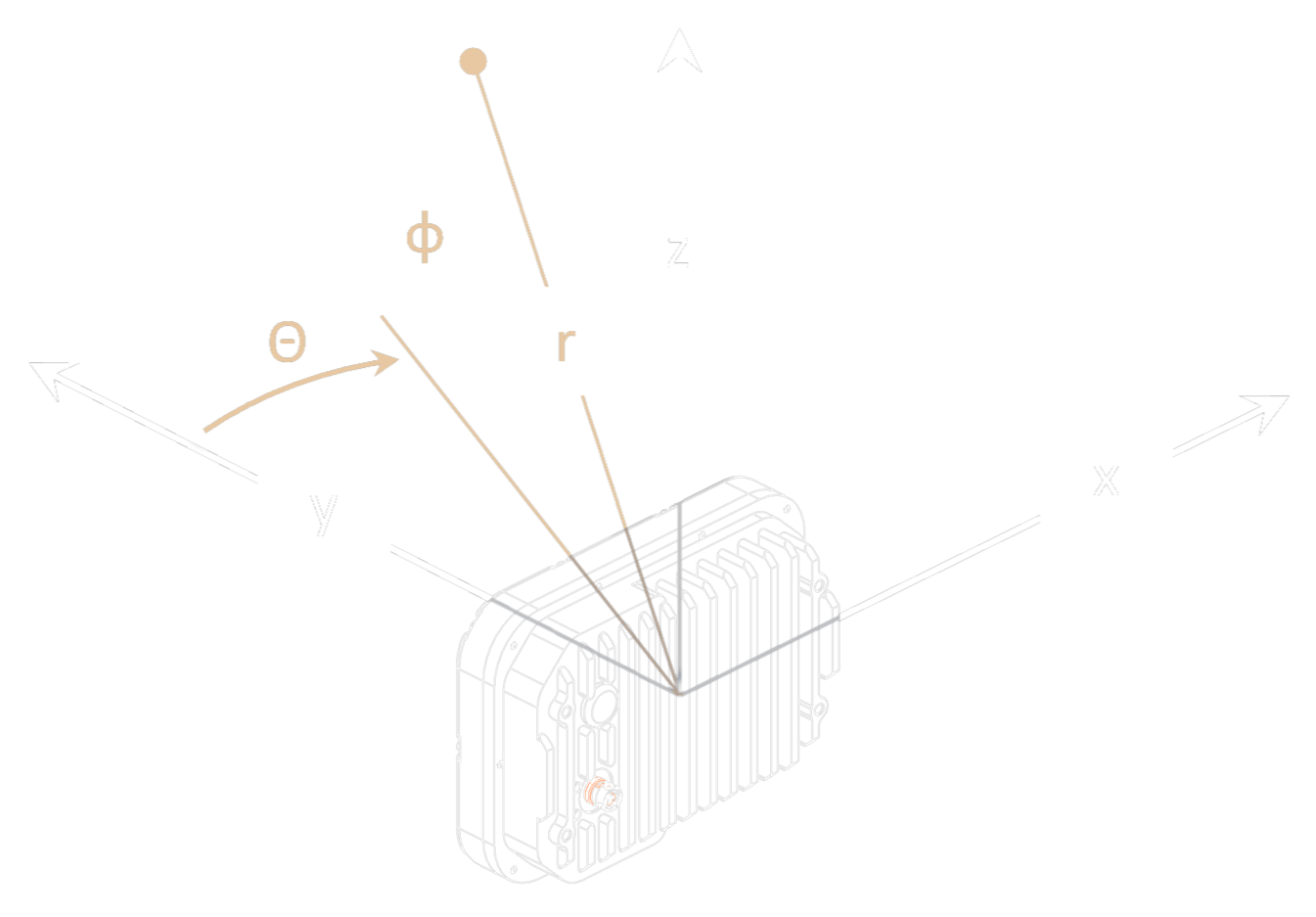

ViSight Auto provides range, azimuth, elevation, and velocity data for all points in the radar point cloud.

ALL WEATHER OPERATION
Vehicle and pedestrian imaging and obstacle detection in degraded visual environments including low light, fog, smoke, rain, and snow.

RADAR RANGE MODES
Six preset range modes are available for quick deployment. Select from 25, 50, 100, 250, 400, or 600 m.

ViSight Auto Specifications

PERFORMANCE
Range:
over 600 meters
Range Resolution:
0.1 – 2.5 m (user selectable)
Azimuth Resolution: 1 degrees
Elevation Resolution:
2 degrees
Velocity Resolution: 0.5 – 2.5 m/s (user selectable)
Velocity Max Unambiguous:
5 – 100 m/s (user selectable)
Azimuth FoV: 100 degrees
Elevation FoV: 16 degrees
Frame Rate: 10 – 30 fps
ENVIRONMENTAL
Dust and Water:
IP67
Operating Temperature: -40 to +85 deg C
Vibration:
Designed for high-vibration environments

PHYSICAL & ELECTRICAL
Dimensions: 13 x 9 x 4 cm
Weight: < 700 grams
Power Consumption: < 20 W
Input Voltage:
12 – 48 VDC
Data Interface: Gigabit Ethernet

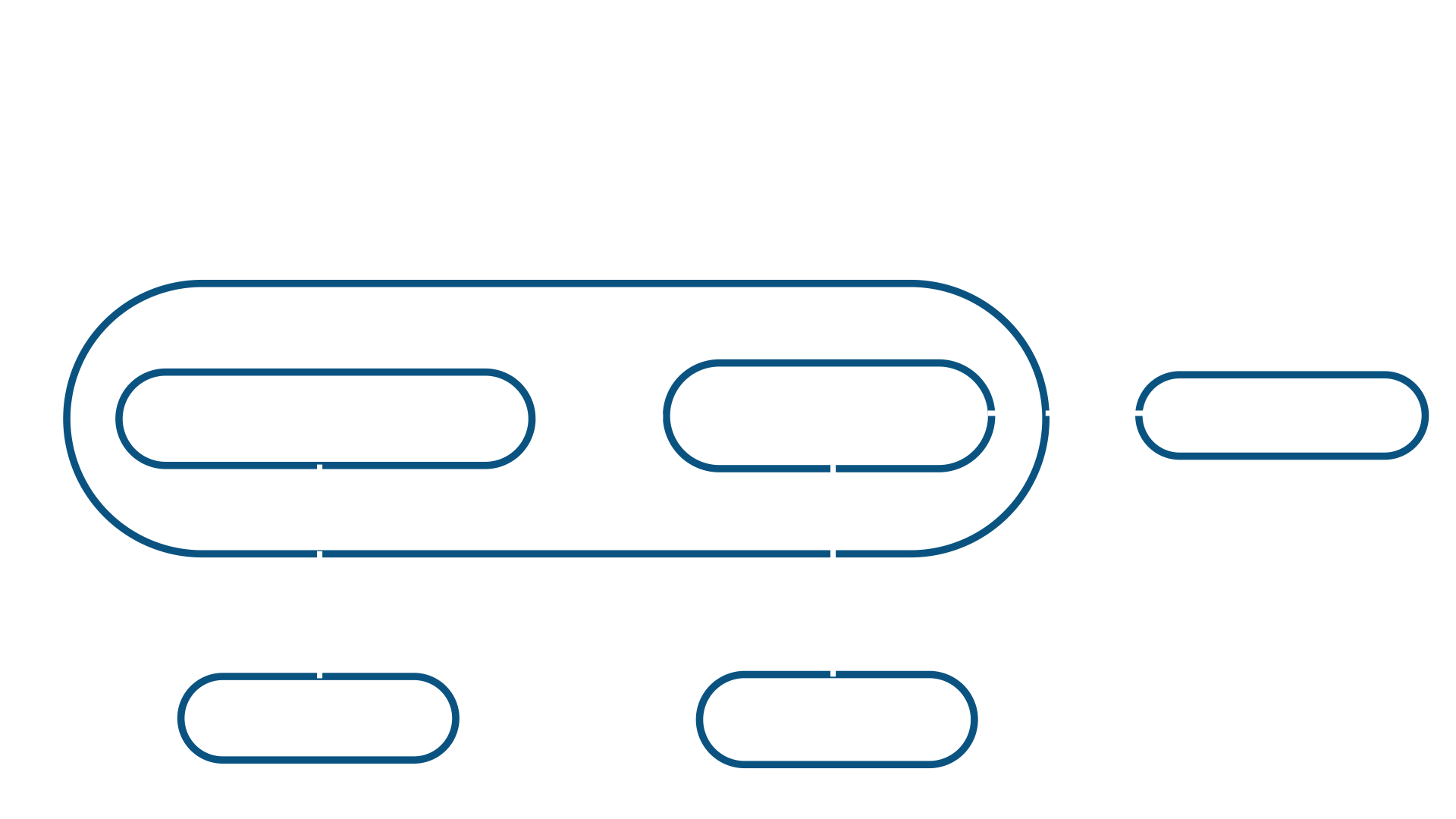

Point Cloud Radar System (PCRS)

The VELDAR Point Cloud Radar System (PCRS) is a 4D imaging radar system that enables new users to start using VELDAR’s automotive radar, ViSight Auto, within minutes. It provides range, azimuth, elevation, and velocity data in popular point cloud formats, and it delivers those point clouds through a gigabit Ethernet connection. PCRS also includes a data viewing and recording application so the user can start working with ViSight Auto data immediately.

FLEXIBLE CONFIGURATIONS
PCRS provides several modes of operation, allowing the user to select the range, resolution, frame rate, and data rate combination that matches their application.

COMMON OUTPUT FORMATS
PCRS can deliver data in several common industry formats, including ROS messages, PCD, and PLY.

SIMPLE CONFIGURATION

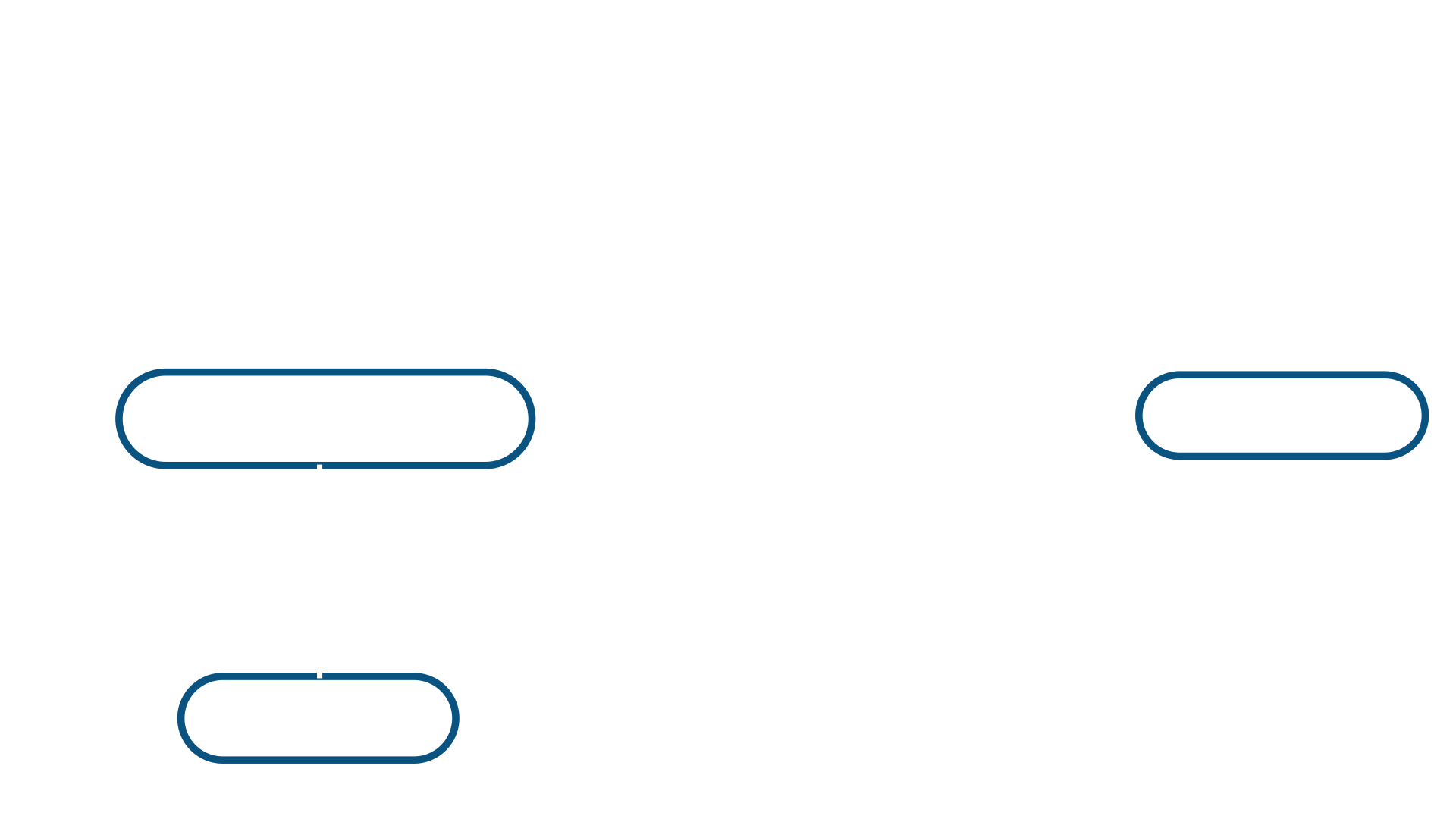

PCRS is an out-of-the-box (OOTB) product that allows new users to start working with ViSight Auto quickly and with no custom setup requirements. The user can connect the Ethernet output cable directly to their data display computer, or to their network for remote access.

PCRS Specifications

Point Cloud Rate: Up to 150,000 points/sec
Frame Rate: 16 frames/s
Points Per Frame: Up to 10,000
Point Cloud Data Format: ROS compatible, PCD, PLY, or VELDAR format
Output: Gigabit Ethernet
ViSight Operating Temperature: -40 to +85 C
RDP Operating Temperature: 0 to 30 C
Input Voltage: 110 VAC, with power supply bricks (included), or 12-30 VDC
Power Consumption: < 60 W

Application Videos

ViSight Auto - Low Latency Obstacle Detection
ViSight Auto now provides very-low-latency detections directly from the radar.
ViSight Auto - Raising the Bar
Video showcases multiple modes of VELDAR's ViSight Auto imaging radar. Includes clips for Short Range (SRR), Long Range (LRR), and Very Long Range (VLRR) radar modes.
ViSight Auto - Road Debris Detection
Debris detection is an important part of ADAS and autonomy. ViSight Auto detects dangerous roadway debris.
ViSight Auto - Navigating Construction Zones
Navigating congested construction zones using ViSight Auto. ViSight Auto can detect traffic cones with no problem and tell the difference between a construction barrel and a construction worker with ease.
ViSight Auto - Long Range Mode
ViSight Auto is a W-band radar that provides high-resolution imagery and target tracking in Degraded Visual Environments (DVE).

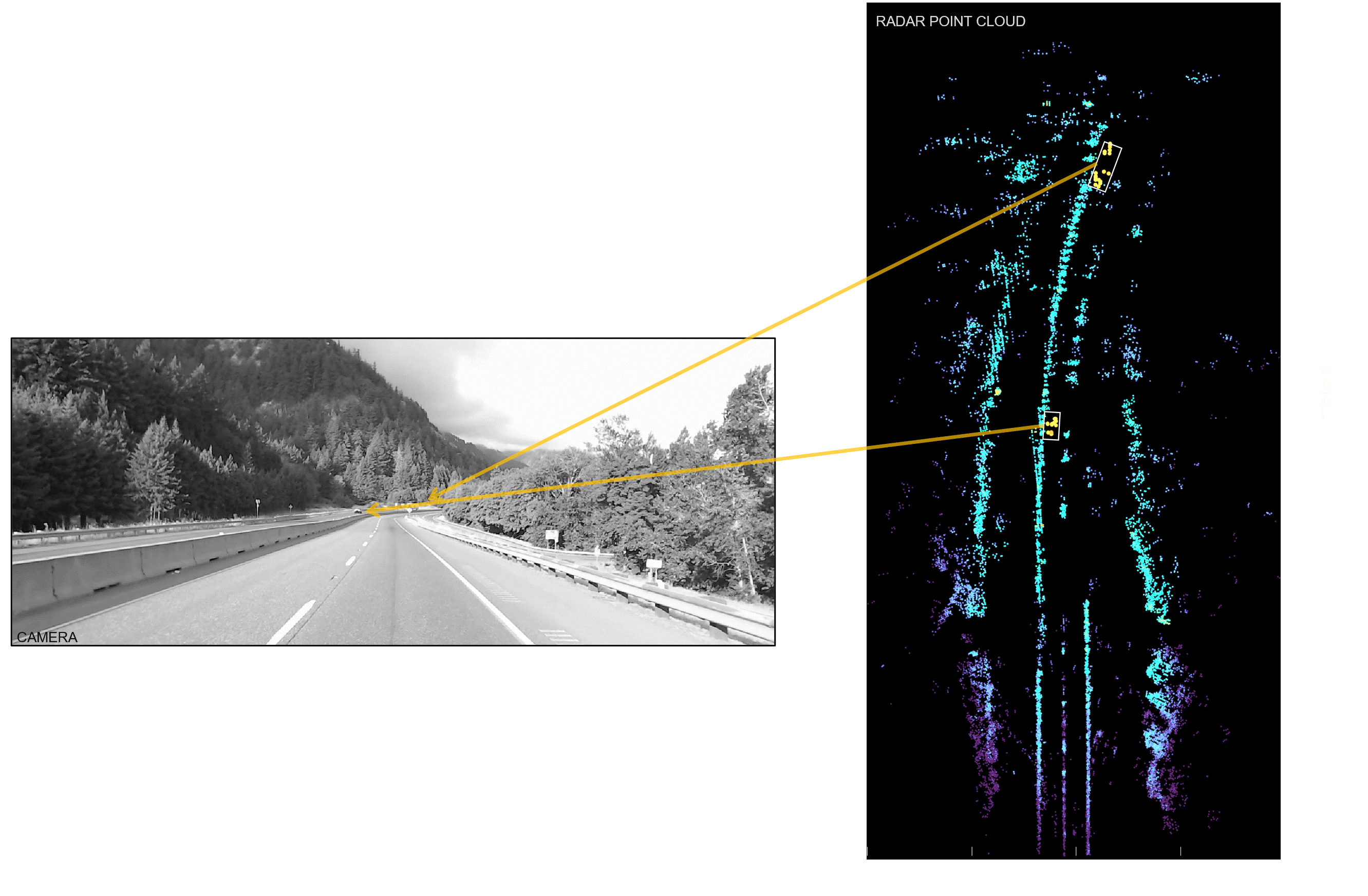

ViSight Auto - Extra Long Range Mode
ViSight Auto's radar data is ideal for automotive applications, including small vehicle detection and tracking to ranges beyond 600 m, and mapping of the surrounding automotive environment.
ViSight Auto - Pedestrian Detection
ViSight Auto's pedestrian detection at long ranges and in close-range highly-cluttered environments.
